FlexSoft® U-Series Unsupported Compressible Foam Backing offer excellent performance benefits for improving Print Quality.

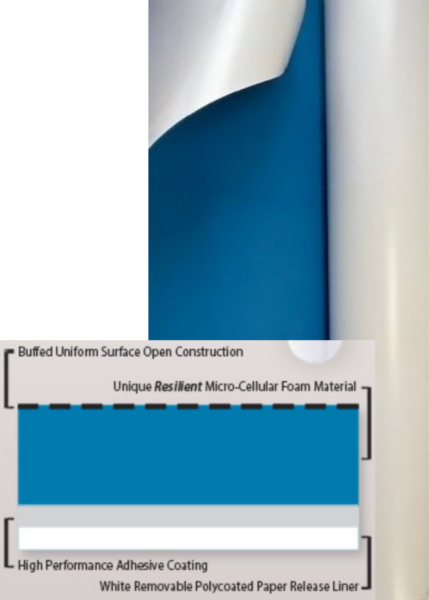

These materials are superior print grade urethane foam materials that are coated on one side with a pressure sensitive adhesive. This allows for the individual tradeshop or printer to attach foam to various carrier sheets such as Polyester, PVC and Tin. U-Series may be easily laminated, by hand or machine in any width or length to achieve the desired printing plate format. U Foams provide for flexibility in the manufacturing process.

Applications

• Attachment to polyester films
• Build up of Print Plate to meet Pitch Diameter Requirements
• Lamination to printing Plate to manufacture 1 Piece Plate Constructions
• Where High Line Screen Increased Print Enhancement and Color Gamut are expanded
• To Reduce Fluting occurrence in and on corrugated paper substrates
• Customer Preference to create necessary Plate Foam Combination
• Lamination Blanket or spot varnish application

Features

• Lighter weight Construction
• Higher durometer foam that resists compression set and enhances print
• Excellent Long Life Foam Resilience in Harsh printing Conditions
• Easy release White Polycoated Paper Liner
• Medium Adhesion Adhesive System for Plate Repositioning
• Controlled Foam Thickness Tolerance minimal foam variance
• High Compression Set Resistance during print run for Stable print reproduction
• Reduces or eliminates Fluting phenomenon for increased quality print

Roll Material Specs

Standard Roll Length:    50’   100′
Standard Roll Width:       54”    60”
Thickness:   .060   .070   .080   .100   .125

Color: Blue
