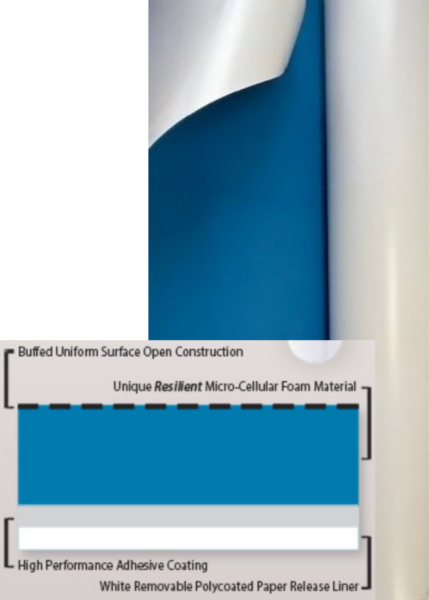

FlexSoft® U-Series 1 Side Coated Compressible Cushion Plate Backing Foam

Unsupported Cushion Backing Foam

FlexSoft® U-Series Unsupported Compressible Foam Backing offer excellent performance benefits for improving Print Quality.

These materials are superior print grade urethane foam materials that are coated on 1 side with a pressure sensitive adhesive. This allows for the individual tradeshop or printer to attach foam to various carrier sheets such as Polyester, PVC and Tin. U-Series may be easily laminated, by hand or machine in any width or length to achieve the desired printing plate format. U Foams provide for flexibility in the manufacturing process.



Applications

  • Attachment to polyester films
  • Build up of Print Plate to meet Pitch Diameter Requirements
  • Lamination to printing Plate to manufacture 1 Piece Plate Constructions
  • Where High Line Screen Increased Print Enhancement and Color Gamut are expanded
  • To Reduce Fluting occurrence in and on corrugated paper substrates
  • Customer Preference to create necessary Plate Foam Combination
  • Lamination Blanket or spot varnish application

TM-UNS-Series Type I

Features
  • Lighter weight Construction
  •  Higher durometer foam that resists compression set and enhances print
  • Excellent Long Life Foam Resilience in Harsh printing Conditions
  • Easy release White Polycoated Paper Liner
  • Medium Adhesion Adhesive System for Plate Repositioning
  • Controlled Foam Thickness
    Tolerance minimal foam variance
  • High Compression Set Resistance during print run for Stable print reproduction
  • Reduces or eliminates Fluting
    phenomenon for increased
    quality print

AF-Series Type II

Features
  • AF features a specially formulated urethane visteolastic micro-cellular compressible foam formula for enhanced print reproduction.
  • Excellent Long Life Foam Resilience in Harsh printing Conditions
  • Facilitates for Higher Press Speed Requirements
  • Smooth Exposed Matte Surface Resistant to Ink or Moisture absorption
  • Laminated Support Layer to reduce stretch or elongation during print
  • High performance Acrylic Adhesive system for attachment to carrier.
  • Superior Foam Thickness
    Tolerance minimal foam
    variance.
  • High Compression Set
    Resistance during print
    run for Stable Print
    Reproduction
  • Reduces or eliminates
    Fluting phenomenon for
    increased quality print

AFO-Series Type III

Features
  • AF features a specially formulated urethane visteolastic micro-cellularcompressible foam formula for enhanced print reproduction.
  • Excellent Long Life Foam Resilience in Harsh printing Conditions
  • Facilitates for Higher Press Speed  Requirements
  • Smooth Exposed Matte Surface Resistant to Ink or Moisture absorption
  • High performance Acrylic Adhesive system for attachment to carrier.
  • Superior Foam Thickness Tolerance minimal foam variance.
  • High Compression Set
    Resistance during print
    run for Stable Print
    Reproduction
  • Reduces or eliminates
    Fluting phenomenon
    for increased
    quality print
